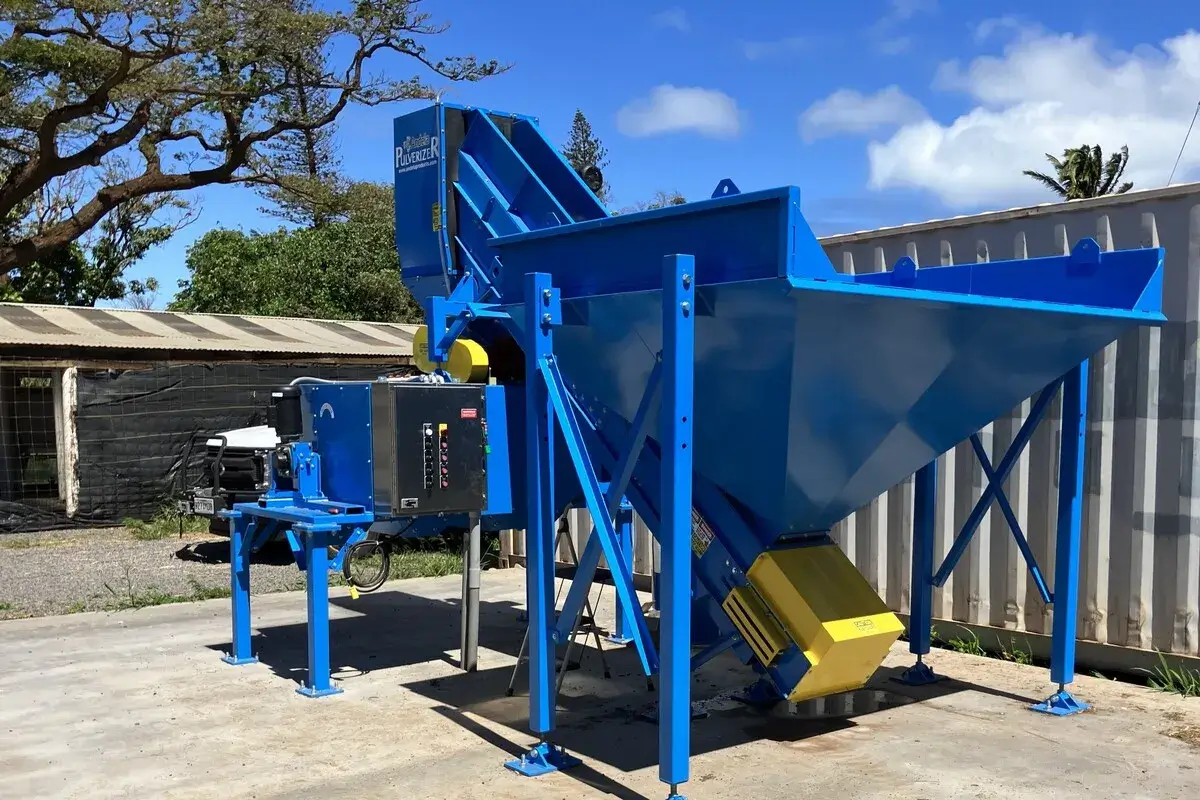

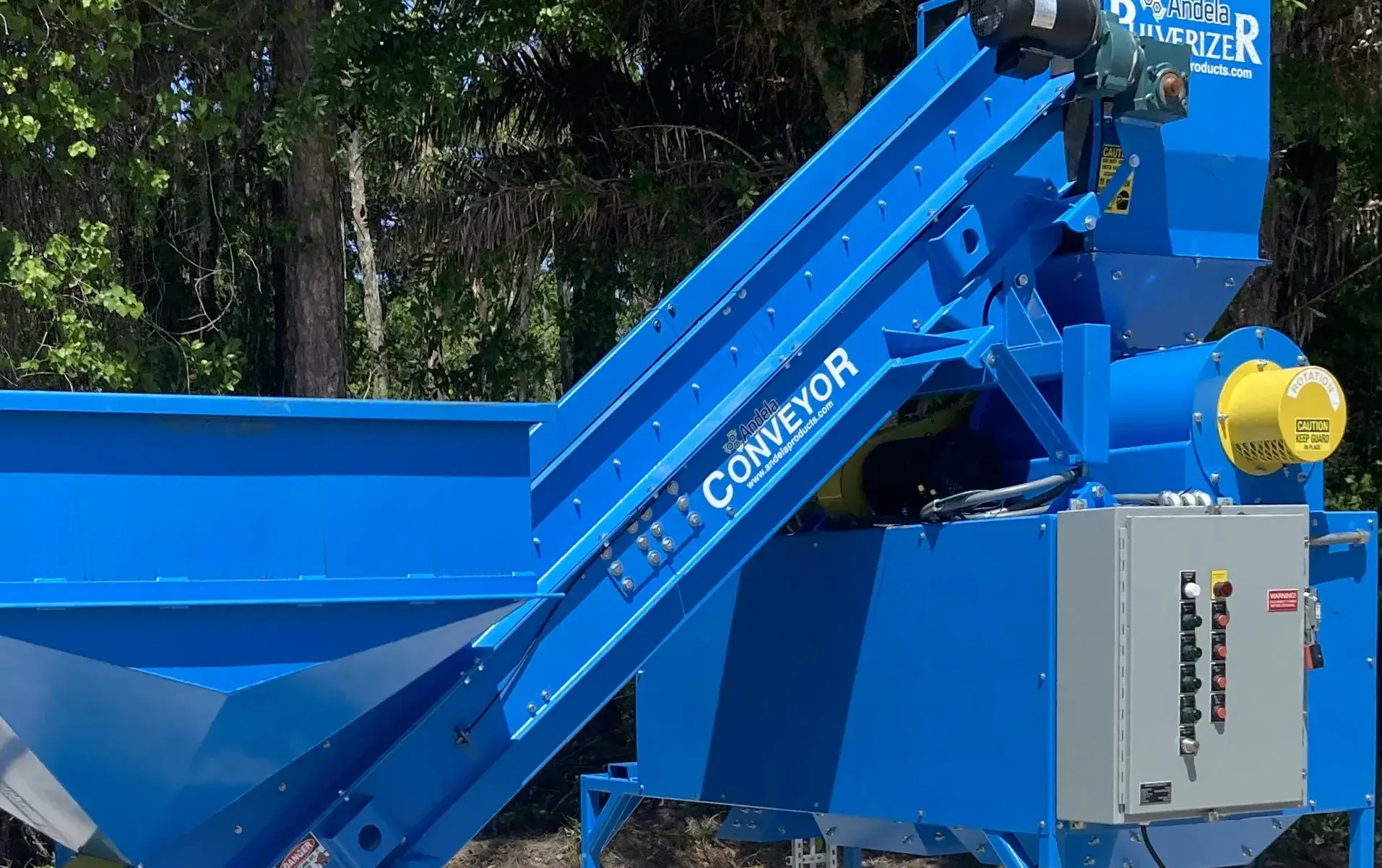

GP-MegaMini Glass Pulverizer (GP-MM)

FEATURES

Quiet operation

Simple to operate and maintain

Reasonably priced

Industrial strength design

Cleated rubber conveyor with self cleaning tail pulley

Big machine features with a small machine footprint

The GP-MegaMini features an integrated trommel which separates the glass into a 1/8” minus sand, 1/8”-3/8” gravel, and non-glass residue (metal, plastic and most paper) without hand sorting. The final product contains no sharp edges suitable for construction sand or gravel, pipe bedding and landscaping applications.

This machine can be customized with either 1 large screen or 2 smaller screens to produce sand and gravel sizes per your specifications. The GP-Mega Mini comes outfitted with a flared infeed hopper at the base of the conveyor to accept full cases or buckets of glass material. The frame of the machine is designed to discharge into self dumping hoppers, reducing the frequency of having to empty the collection bins during operation.

  • Process 1500-2000 pounds of glass per/hour.
  • Reduces all types of glass down to a rounded glass particle 3/8 of an inch or smaller.
  • Infeed all types of glass, no precleaning required.
  • Produce both a glass sand and glass aggregate, without sharp edges.
  • Integrated trommel screen separates out the residue (caps, labels, and corks).
  • Compact and integrated unit with Pulverizer, Trommel Screen, and Electrical Controls.

See it in action

Not sure what you're looking for? Please use our application chart to find the right system for your business needs.

Machine Specifications

Dimensions

Overall Length: 160”
Overall Width: 102”
Overall Height: 129”
Approx. Shipping Weight: Machine- 3000 lbs. / Conveyor: 1300 lbs.

Trommel

Screen Barrel Diameter and Length: 21” OD x 4’ long, 21 in. x 2 ft. sand screen and 21 in. x 2 ft. aggregate screen
Rotating Brush: (2) - 7” diameter
Screen Type: Stainless Steel Woven Wire
Motor Size: 1 hp

Pulverizer

Machine Input Opening: 12” x 12”
Barrel Diameter and Length: 16” x 34”
Barrel Liner: CC Abrasion Resistant Steel
Motor Size: 5 hp
Solid Steel Shaft Diameter: 2”
Number of Hammers: 28
Hammer Type: Flailing Arm/Hardened Steel
Bearing Size: 2”Heavy Duty
Seal Protection: 2 Seals at Each Shaft Bearing

Conveyor

Belt Type: Slider Bed, Cleated Rubber Belt, Self-Cleaning Tail Pulley
Motor: 1 hp

The manufacturer reserves the right to change designs and specifications without notice.

Safety Features

E-Stop
Protective Guards: Cover Input Hopper, Drive Unit and Bearings

Electrical – Control Panel Included Pre-wired to Motors

Motor Voltage: 230/460V, 60 Hz 3 Phase
Controls: Push Button Start/Stop
